MACHINES

Raise 3D Pro 2 Plus

A volume-defined printer focused on creating XL Carbon Parts.

Printer Type: FFF FDM

Build Volume: 305mm x 305mm x 605mm (12in. x 12in. x 23.8in.)

Nozzle Diameter: 0.4mm - 0.6mm

Filament Diameter: 1.75mm

MAX Nozzle Temp: 300° C (572° F)

MAX Print Speed: 150mm/s

MIN Layer Height (Resolution): 0.10mm - 0.4mm (100 - 400 microns)

MAX Flow Rate: 10mm3/s

Printing Exclusively Reinforced Filaments, Used for Final-Stage Applications,

for Large Measurement Applications and Single-Piece Applications.

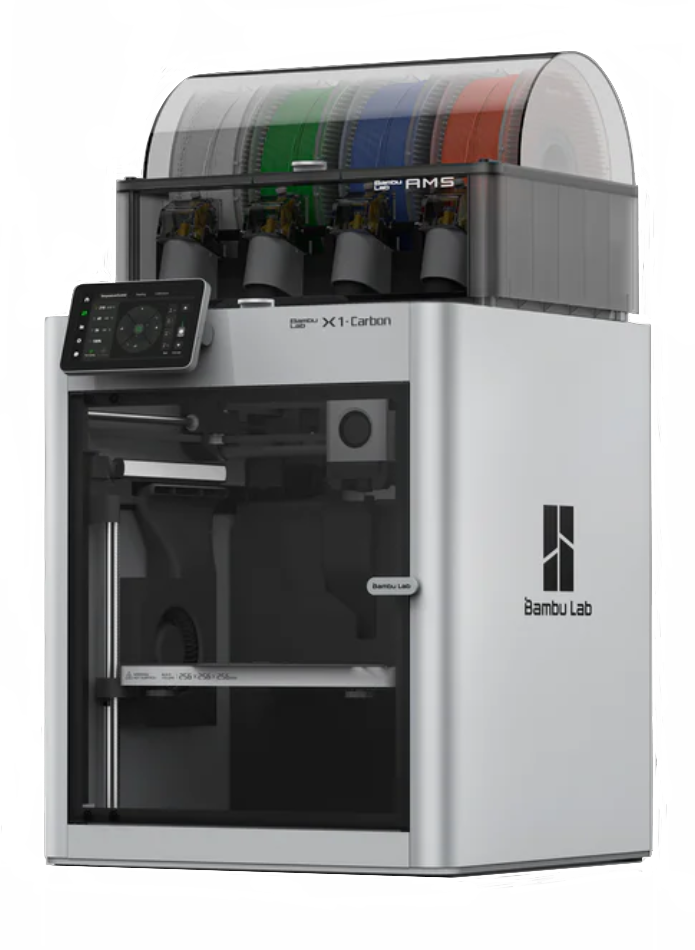

Hardened Steel Extruder, ~500mm/s+ Speed, Abrasive Resistant, Multi-Material Printing, and AI Monitored Print Progression

Printer Type: FFF FDM

Build Volume: 256mm x 256mm x 256mm (10.8in. x 10.8in. x 10.8in.)

Nozzle Diameter: 0.4mm - 0.6mm

Filament Diameter: 1.75mm

MAX Nozzle Temp: 300° C (572° F)

MAX Print Speed: 500mm/s

MAX Travel Acceleration: 10,000mm/s2

MIN Layer Height (Resolution): 0.08mm - 0.2mm (80 - 200 microns)

MAX Flow Rate: 32mm3/s

Higher Quality in a Quarter of the Prototyping Time, Industry-Ready Finish.

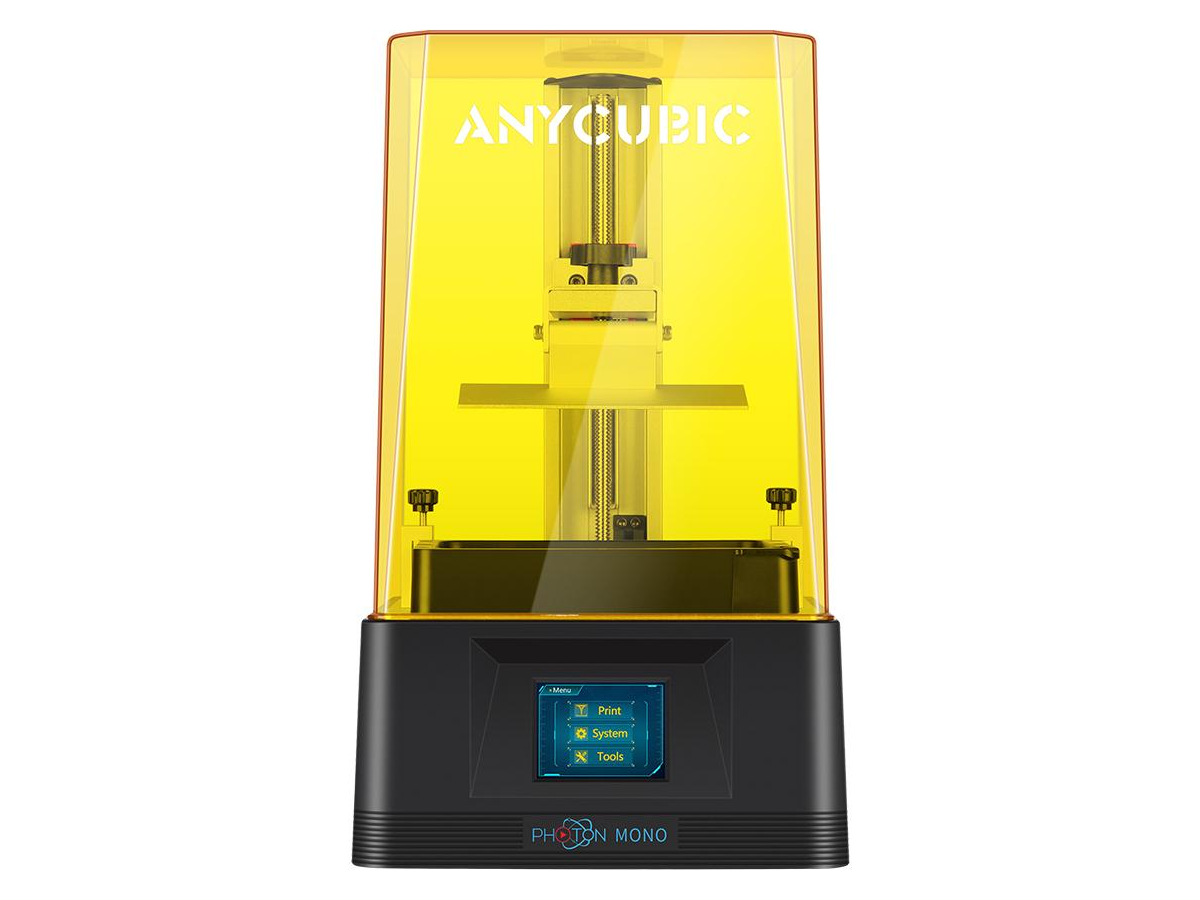

UV Cured Resin Prints for the Finest Details at High Quantities

Printer Type: Resin SLA

Build Volume: 132mm x 80mm x 165mm (~5.2in. x ~3.2in. x ~6.5in.)

Light Source: 450nm UV

MIN Screen Resolution: 2560 x 1620 (2k)

MAX Screen Resolution: 3840 x 2400 (4k)

XY Resolution: 10um - 30um

Best for Custom Molds, 3D Scans, Complex Models, and Bio/Medical-Applications.
